6009A Associated Battery Charger Parts List





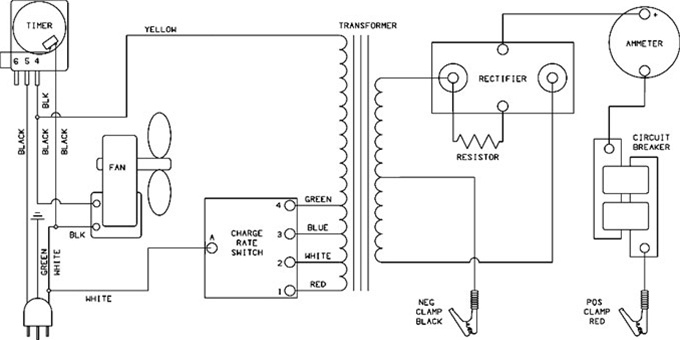

MODEL 6009A REPAIR PARTS
Diagram # Description Part Number
1 Front Leg 605671
2 Wheels w/nuts (2) 605672
3 Handle 605213
4 Stop/Go Lite 604579
5 Fan Blade 610189
6 Fan Motor 610190
7 Rectifier 610122
8 Timer 611245/54
9 Amps Meter (Cover 600121)
605204
10 AC Cord 611248
11 Switch w/knob (1) 611187
12 DC Cable Set 611074
13 DC Circuit Breaker (each)
610069
13 DC Circuit Breaker Kit 610124
14 Axle w/nuts 610052
15 Transformer 610201
17 Clamps 6202
18 Jaw Kit (repairs 1 clamp) 610970
19 Clamp Bar 610517
20 Base 610054
21 Pointer Knob 603147
22 Back Panel 610458
23 Right Side Panel 611460
24 Front Panel With Decal
610467
Not Shown


Top Panel 610232

Left Side Panel 610461


MAINTENANCE INSTRUCTIONS
Worn clamps and jaws should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of jaw and clamp kits. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified serviceman. Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.
