020-0076 Associated Chrome Handle Screws (Each)

Clear Acrylic Lens Replaces Cover For 605204 Meter And Others

The 6001A is one of the highest performance fleet car battery charger on the market, comes with our best manufacturer's boost rating of 625 Amps. Charges 6 & 12 volt batteries. Heavy-duty transformer, patented "Sub-Sil" multi diode rectifiers, longer AC cord and 8' (4 AWG) DC leads are standard features for higher performance. Features include, fully insulated "Flex-Spring" clamps; the strongest in the industry. An Automatic Timer for accurate charging. Patented "Stop/Go" light polarity protection. Heavy-duty chrome plated handle. Rugged 7 inch wheels. Made in the USA. UL listed for indoor/outdoor use, "Safe In Any Weather"

Associated Pointer Knob with spring clip (Press-On). Fits 1/2 round shaft switches and timers only. For 3/4 round shaft applications see 610930.

603597 Associated A/C Circuit Breaker

STOP/GO LITE Assembly will upgrade any battery charger clamp kit or repair an existing damaged light. A great safety feature for any battery charger. Fits Snugly inside a clamp lever and reads red for no-go, green for go, preventing reverse connection in poorly lit or unreadable conditions.

604592 Associated Booster Cables STOP/GO LITE Assembly. This is the replacement light only (does not include resistor See 604579 for complete kit). For repair of an existing damaged light. A great safety feature for any battery charger. Fits Snugly inside a clamp lever and reads red for no-go, green for go, preventing reverse connection in poorly lit or unreadable conditions.

605183 Associated Front Leg 7" Wheeled Units

Associated 605204 Ammeter 0-100 Amp Range w/ Boost. Includes Sealing Gasket, Mounting Template and mounting hardware.

Associated 605207 DC Cable Set DISC SEE 611074

605209 Associated Side Panel 6001, 6002, 6003, 6008. Universal Side panel utilized on both sides (axle cutout on front and back).

Lid Assembly with hinge, screws and rubber bumper pad. Replace your lid and keep those knobs from getting knocked off. Protects the switches and gauge s from damage and weather.

Chrome Handle with screws and insulated clamp bar.

605673 Associated Axle With Nuts

50 Amp DC Circuit Breaker

This circuit breaker kit replaces all 3 50 Amp circuit breakers in the unit as a kit. Includes leads and mounting hardware with star nuts and washers are included for a universal application.

610138 Associated Top Panel Screen 6001A

Associated 610180 KNOB

610189 Associated Fan Blade Kit, includes two blades with the same diameter, rotation, pitch and wings but differing shaft diameter for older units.

Universal Fan Motor Installation Kit includes everything needed to install on virtually any unit. Comes complete with a 115v. skeleton frame motor (reversible), equipped with 1/4" spade terminals for electrical connections, a fan blade, a set of 1/4" female spade terminal adapter leads, 1/4" Crimp-on female spades for alternate hook up, 2 sets of pin terminals for molex plug installation and 2 wire nuts.

This kit provides everything needed to replace older obsolete electrical driven timers with a new spring wound mechanical timer. The kit includes Knob, wiring and electrical connections, wire ties, spade terminals for universal applications and instructions.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

610517 Associated Clamp Bar 7"

610553 Associated Pair of 7" rubber wheels with a pair of hubs for 3/8" axle.

610753 Associated Chrome Handle

Mechanically controls charging in timed Mode with manual hold mode. Two Independent Single Pole Single Throw (SPST) Switches rated 15 amperes. 1/4" spade terminals. Timer has Hold Position.
*See 611254 retrofit Timer kit.

610931 Associated Knob with set screw for controls with 1/4" Stem.

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.

Associated 611073 Rectifier Installation Kit. The Highest rated Rectifier on the market, completely assembled, includes mounting hardware and insulators.

Associated DC Cable Assembly, with 500 amp, fully insulated, "Flex-Spring" clamps. 8' (4 AWG)

611078 Associated Transformer 6001A Welded Base

611080 Associated Back Panel 6001A Upgrade

611131 Associated Top Panel 6001A (Mechanical Timer Units Only)

This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.

Fan Motor (2 Fastons)

611245 Associated 120 Minute Electronic Timer with Knob, for use in units with a 120 minute timer already installed. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

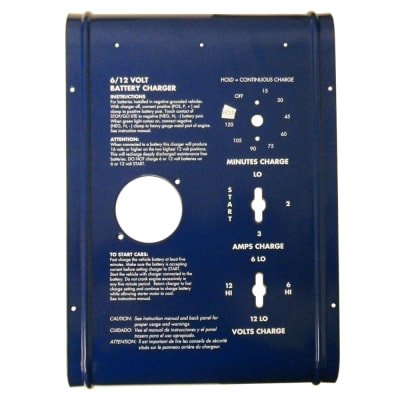

Top Panel 6001A With Labeling for the 120 Minute Timer units. You will have to buy the timer to complete the install if you have the old style 90 minute timer or see the 611131 Panel.

611253 Associated Power Cord 14/3 SJOW-A

611254 Associated 120 Minute Electronic Timer with Knob, retrofit for units with a mechanical timer. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Need side terminal adapters? Model 6200 fits Associated and most other insulated clamps for easier connections. Side terminal adapters clip easily into place inside the clamp rivit and pull out of the way when not in use.

Professional quality heavy duty 500 amp replacement clamps for all booster cables. Replace Associated clamps or other manufacturer's products with these professional quality insulated clamps. Clamps incorporate Associated's innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry.

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.
