You are here: Home > Battery Charger Parts > Goodall Battery Charger Repair Parts > 51-815V Goodall 200/40/20 amp 6/12 volt Wheeled Automotive Battery Charger

51-815V Goodall 200/40/20 amp 6/12 volt Wheeled Automotive Battery Charger




Ref # Part Description
1 N/A Base
2 51-294 (2) Hubs
3 51-286 (2) Wheels Axle and (2) Hubs
5 51-287 Fan Blade
7 51-288 Fan Motor With Blade & Mounting Bracket
8 51-289 Power Cord with Strain Relief
9 51-292 "-" Negative Clamp with Cable and Strain Relief
9 249-093-900 "-" Negative Clamp
10 51-293 "+" Positive Clamp with Cable and Strain Relief
10 249-094-900 "+" Positive Clamp
11 51-236 Rectifier Assembly
11 512-127-000 Rectifier Stand Off
12 51-240 Circuit Breaker
13 51-266 Voltmeter
14 51-257 Ammeter
16 51-247 Control Knob (Rate Selector)
16 51-247 Control Knob (Timer)
17 51-252 Rotary Switch
18 51-245 Timer
21 51-295 Front Foot
Not Shown 51-290 Handle
Not Shown 51-291 Clamp Holder


Sort By:
Page of 1
246-041-888 Selector Knob 246-041-888 Selector Knob

246-041-888 Selector Knob. Fits new style plastic stem switches only.

Price $6.36
247-159-666 Ammeter Horizontal 0-60 Amp Range 247-159-666 Ammeter Horizontal 0-60 Amp Range

Ammeter Horizontal 0-60 Amp Range features easy snap-in installation, no tools required. Black Charge Rate face. 0-60 Amp range with start. Wire through induction pick-up for greater accuracy.

Price $29.94
249-066-666 Solar Booster Clamps Positive & Negative 249-066-666 Solar Booster Clamps Positive & Negative

Clamps Positive & Negative. Screw Type Connection for ring terminal cables to anchor wire for solderless connection. Dual Hot Jaws for better power distribution. Includes Phillips anchor screws. Does not include hardware for cables, (ring terminals, solder etc...).

Discontinued - replaced by 238-006-666
249-093-900 Black Negative Booster Clamp 249-093-900 Black Negative Booster Clamp

Black Negative Booster Clamp features full power jaws (distributes full power to both jaws), heavy duty construction for durability and long life, solid copper jaws for better conductivity, and a braided internal power crossover strap instead of wire for even power to the jaws.

Price $15.06
249-094-900 Red Positive Booster Clamp 249-094-900 Red Positive Booster Clamp

Red Positive Booster Clamp features full power jaws (distributes full power to both jaws), heavy duty construction for durability and long life, solid copper jaws for better conductivity, and a braided internal power crossover strap instead of wire for even power to the jaws.

Price $15.06
412-751-666 Handle W/Hardware 412-751-666 Chrome Battery Charger Handle

412-751-666 Chrome Battery Charger Handle. Replaces 442-020-166 and other older Century / Solar Handles

Price $34.82
442-020-166 Century Battery Charger Handle 442-020-166 Century Battery Charger Handle

442-020-166 Century Battery Charger Handle. Flat side black painted finish.

Price $14.85
51-236 Goodall 250 Amp Heatsink Rectifier Kit 60 Amp Continuous Duty, 12 Diode Daisy Wheel Design. 51-236 Goodall 250 Amp Heatsink Rectifier

51-236 Goodall 250 Amp Heatsink Rectifier Kit 60 Amp Continuous Duty, 12 Diode Daisy Wheel Design. Extra Long center studs for thick transformer lead wires.

Discontinued - see 865-682-666
51-240 Circuit Breaker 90 Amp 51-240 Circuit Breaker 90 Amp

SLA90 Circuit Breaker, Open construction, automatic reset, 90 Amp, no terminal Hardware

Price $34.74
51-245 Mechanical Timer 2 Hour With Finish Bell 51-245 Mechanical Timer 2 Hour With Finish Bell

Mechanically controls charging in timed Mode with manual hold mode. Single Pole Single Throw (SPST) Switch rated 15 amperes, finish bell. Termination is designed to accept 1/4" Quick Disconnect terminals.

Discontinued see 0099000094
51-247 Goodall Selector Knob 51-247 Goodall Timer Knob

51-247 Timer Knob for 1/4" O.D. shaft switches

Our Price: $15.99

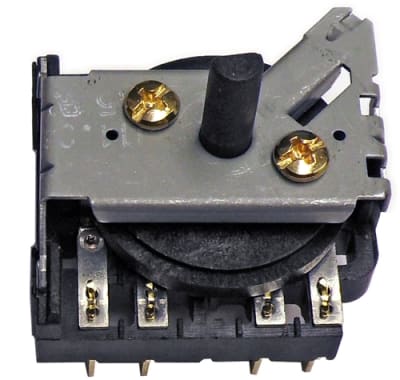

51-252 5 Position Selector Switch 51-252 5 Position Selector Switch

51-252 5 Position Selector Switch (4 Positions Powered 1 Off) Open Frame Design 1/4" quick disconnect terminals.

Price $53.94
51-257 Goodall Ammeter Horizontal 0-60 Amp Range With Start (100 Amp) 51-257 Goodall Ammeter Horizontal 0-60 Amp Range With Start (100 Amp)

51-257 Goodall Ammeter Horizontal 0-60 Amp Range With Start (100 Amp)

Discontinued See 247-159-666
51-266 Goodall Voltmeter Horizontal 0-40 Volt Range 51-266 Goodall Voltmeter Horizontal 0-40 Volt Range

51-266 Goodall Voltmeter Horizontal 0-40 Volt Range

Price $29.94
51-286 Goodall Wheels Hubs Axle Set 6" Wheeled Units 51-286 Goodall Wheels Hubs Axle Set 6" Wheeled Units

51-286 Goodall Wheels Hubs Axle Set 6" Wheeled Units

Price $52.03
51-287 Fan Blade 6" 4 Blade 51-287 Fan Blade 6" 4 Blade

51-287 Fan Blade 6" 4 Blade

Price $15.42
51-288 115 Volt Fan Motor With Fan Blade & Mount 51-288 115 Volt Fan Motor With Fan Blade & Mount

51-288 115 Volt Fan Motor With Fan Blade & Mount. .195 diameter shaft. Your unit may not require the mount, in which case discard it.

Discontinued See ASO610190
51-289 115 Volt Power Cord Grounded 16/3 SJTO 51-289 115 Volt Power Cord Grounded 16/3 SJTO

51-289 115 Volt Power Cord Grounded 16/3 SJTO 1/4" Quick Disconnect terminals on black & white with ring terminal on ground.

Price $27.00
51-290 Handle Wheeled Units 51-290 Handle Wheeled Units

51-290 Handle Wheeled Units

Price $18.00
51-291 Century Battery Charger Clamp Holder 51-291 Century Battery Charger Clamp Holder

51-291 Century Battery Charger Clamp Holder With Screws. Now you can stow your clamps in a safe place that doesn't get in the way, drag the ground or short out. Fits any round bar battery charger handle.

Price $14.40
51-292 Negative Cable & Clamp Assembly 6ga 84" 51-292 Negative Cable & Clamp Assembly 6ga 84"

51-292 Negative Cable & Clamp Assembly 6ga 84"

Price $30.60
51-293 Positive Cable & Clamp Assembly 6ga 106" 51-293 Positive Cable & Clamp Assembly 6ga 106"

51-293 Positive Cable & Clamp Assembly 6ga 106"

Price $30.60
51-294 Wheel Hub For 3/8" Axle 51-294 Wheel Hub For 3/8" Axle

51-294 Wheel Hub For 3/8" Axle

Price $1.80
51-295 Front Foot With Hardware 51-295 Front Foot With Hardware

51-295 Front Foot With Hardware

Price $5.40
865-682-666 Heatsink Rectifier Kit 865-682-666 Heatsink Rectifier

865-682-666 Heatsink Rectifier.  Product as pictured.  Does not include any mounting hardware (512-127-000).

Price $69.95
TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer

TJ1-120MB Universal Mechanical 2 Hour Timer With Finish Bell. Mechanically controls charging in timed Mode, has "Hold" for manual un-timed charging. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" Quick Disconnect terminals. Includes mounting screws. Replaces many older mechanical timers.

Discontinued see 0099000094
