Product Features
- Made in the U.S.A.
- Effortless air operation will greatly reduce operator fatigue and speed up the efficiency of garage work
- A compact yet powerful Air Turbo Motor U.S. Patent No. 5,341,723 is equipped to raise the load to the desired height efficiently, effortlessly, and safely U.S. Patent No.5,946,912, a built-in by-pass device protects hydraulic system from over pumping damage
- Versatile Quick Connector design provides for easy removal of air hose from air motor allowing compact storage or remote operation
- All air bottle jacks have chrome plated rams
| Model |
Capacity |
Minimum Height |
Maximum Height |
Hydraulic Lifting |
Extension Screw |
Base Size Length |
Base Size Width |
G.W. |
| 18126C |
12 Ton |
9-5/8" |
18-7/8" |
3-1/8" |
6" |
8-1/8" |
5-7/8" |
27 Lbs. |
| 18122C |
9-1/2" |
18-1/2" |
5-1/2" |
3-1/2" |
8" |
6-1/2" |
29 Lbs. |
| 18202C |
20 Ton |
9-3/4" |
18-3/4" |
5-1/8" |
3-7/8" |
8-1/2" |
7-1/4" |
40 Lbs. |
| 18206C |
9-5/8" |
18-7/8" |
3-1/8" |
6" |
9h" |
6-3/4" |
37 Lbs. |
| 18204C |
9-34" |
18-3/4" |
5-1/8" |
3-7/8" |
8-1/2" |
7-1/8" |
37 Lbs. |
| 18209C |
8-1/8" |
15-1/2" |
4" |
3-3/8" |
8-1/2" |
7-1/4" |
37 Lbs. |
| 18302C |
30 Ton |
11" |
18-1/8" |
7-1/8" |
N/A |
10-1/4" |
8-1/4" |
63 Lbs. |

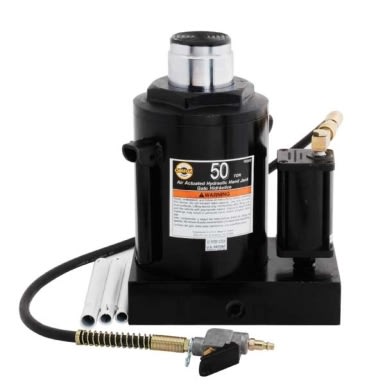

| 18502 |
50
Ton |
12" |
19" |
7" |
10-7/8" |
7-3/8" |
134-1/2 Lbs. |
| 18992 |
100 Ton |
12" |
18-1/8" |
6-1/8" |
12-5/8" |
9-3/8" |
220-1/2
Lbs. |
|
|
|
|
|
|
|
