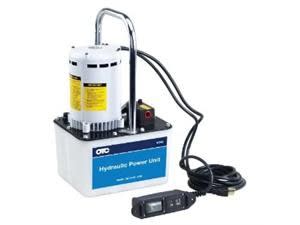

Product Features
To Fully extend a 10-Ton Ram with a 10" Stroke:- 5" Travel No Load: 1.2 seconds
- 5" Travel Under Load: 14 seconds
- Total Time: 15.2 seconds
Specifications:- Maximum Pressure Output: 10,000 PSI
- RPM: 3,450
- Oil Delivery (cu in / min @)(Typical delivery, actual flow will vary with field conditions)
- 0 PSI: 525
- 100 PSI: 490
- 10,000 PSI: 45
- Voltage: 1/2 hp, 115 volt 60 Hz Single Phase (for 230 Volt, Please Specify)
Reservoir:- Capacity: 1.9 gallon
- Useable: 315 cu in
Measurements (See diagram in second photo):- Overall Height (A): 20"
- Reservoir Height (B): 7"
- Overall Width (C): 11-3/8"
- Width of Feet (D): 7-1/8"
- Height to top of Motor (E): 14-7/8"
- Overall Depth (F): 9-1/4"
- Depth of Feet (G): 5-1/8"
|
|
|
|
|
|
|
