Product Features

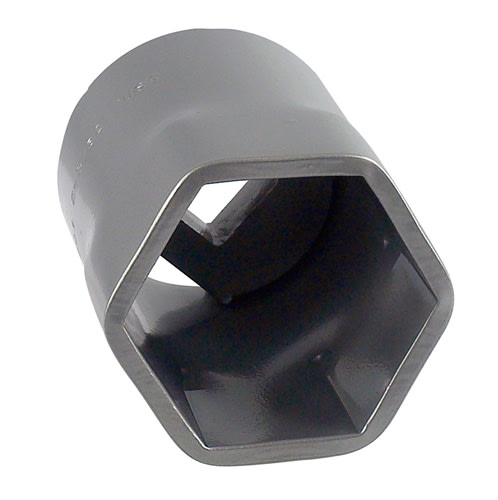

- Bearing Locknut Socket - 2-9/16" - 6 Point
- Truck wheel bearing locknut socket has 3/4” square drive opening
- Permits the use of an extension & torque wrench to tighten the locknut as required
- Locknut removal & installation is simple, even when wide rim wheels are involved
- A long extension may be attached to the socket to provide the necessary clearance
- Socket is made of high-strength steel
- Opening resists “rounding out”
- Similar to Ford No. 205-043 (T70T-4252-W)
- Fits special “rounded” hex nut found on Dana axles of some Ford trucks
- Depth of locknut sockets is 5"
NOTE: Sockets are designed for use with 3/4" square-drive manual tools only. Impact tool use VOIDS sockets' warranty.
Measure from flat to flat to determine size of locknut, then consult the chart to find the correct socket.
Socket No.
| Opening Size
| | Socket No. | Opening Size | | Socket No.
| Opening Size | 1901
| 2-3/32" (6-pt)
| | 1933
| 2-7/8" (8-pt) | | 1912
| 3-7/8" (6-pt) | | 1920 | 2-1/4" (6-pt) | | 1906 | 3" (6-pt) | | 1913 | 3-7/8" (8-pt) | | 1902 | 2-3/8" (6-pt) | | 1907 | 3" (8-pt) | | 1914 | 4" (6-pt) | | 1936 * | 2-3/8" (6-pt) | | 1934 | 3-1/8" (6-pt) | | 1915 | 4-1/8" (6-pt) | | 1903 | 2-3/8" (8-pt) | | 1935 | 3-1/8" (8-pt) | | 1940 | 4-1/8" (8-pt) | | 1921 | 2-1/2" (6-pt) | | 1908 | 3-1/4" (6-pt) | | 1916 | 4-3/8" (6-pt) | | 1904 | 2-9/16" (6-pt) | | 1909 | 3-1/4" (8-pt) | | 1917 | 4-3/8" (8-pt) | | 1905 | 2-9/16" (8-pt) | | 1924 | 3-3/8" (8-pt) | | 1938 | 4-1/2" (8-pt) | | 1928 * | 2-9/16" (6-pt) | | 1910 | 3-1/2" (6-pt) | | 1941 | 4-13/16" (8-pt) | | 1922 | 2-5/8" (6-pt) | | 1911 | 3-1/2" (8-pt) | | 1918 | 4-7/8" (6-pt) | | 1923 | 2-3/4" (6-pt) | | 1925 | 3-3/4" (8-pt) | | 1919 | 4-7/8" (8-pt) | | 1937 | 2-3/4" (8-pt) | | 1926 | 3-3/4" (6-pt) | | 1939 | 5-1/4" (6-pt) | | 1932 | 2-7/8" (6-pt) | | 1927
| 3-13/16" (8-pt) | | 7795 | 2-1/2" (6-pt) | | | | | | | | 7796 | 2-3/4" (6-pt) |
* = Fits special "rounded" hex nut found on Dana axles of some Ford trucks and Depth of locknut sockets is 5"
|
