381A TPI Infrared Combo Thermometer With Laser -4 To 572 F 9:1 Ratio

Price $73.46

Product Code: TPI381A

Qty:

Description

Prop65

TPI 381A Non-Contact IR Thermometer -4°F to 572°F (-20°C to 300°C) 9:1 Ratio with Laser Sight - Thoroughly testing and diagnosing high efficiency HVACR systems or large surface areas can be labor intensive and expensive. Using the appropriate non-contact thermometer can reduce man hours and help insure system performance more easily, accurately and affordably.

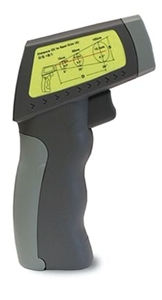

The 381 is a gun-type non-contact IR thermometer that is capable of measurements from -4°F to 572°F (20°C to 300°C). Measure Hard-to-reach, sensitive, or large moving target areas. Use the 381 to measure surface temperature and watch the LCD immediately display accurate data without the use of a probe. And now with added contact probe input for added value.

Product Features

Easy to use single button operation
0.1 resolution for best reading
Last reading hold
Soft holster pouch included
9:1 distance to spot ratio
Large, easy to read display
°C and °F selectable
9V battery included
Temperature range: Non-contact: -4° to 572°F (-20° to 300°C) Contact:* -148° to 2192°F (-100° to 1200°C)

Applications

Remote vent and return temperature measurements
Tubing, piping, and sheet metal temperatures
Leaks around cooler or freezer doors

HVACR

Compressor heads
Vents
Insulation
Leaks around cooler or freezer doors
Leaks around windows
Steam traps
Registers

FOOD

Surface temperatures
Holding cabinets
Serving temperatures
Storage temperatures

ELECTRICAL

Cables
Circuit breakers
Connections
Machinery
Motors and Transformers

Specifications

Range: -4°F to 572°F (-20°C to 300°C)
Accuracy:
- ± 5°F (3°C) below 32°F (0°C)
- 32°F to 572°F (0°C to 300°C) ± 2% of reading
- or ± 3.5°F (2°C) whichever is greater
Contact Accuracy: +(0.5% of reading + 3.5°F (2°C)
Repeatability: ±2% or ±2°C whichever is greater
Response Time: 500 m Second
Spectral Response: 7µm ~ 14µm
Emissivity: 0.95 fixed
Distant to Spot Ratio: 1:9
Laser Sighting: Yes
°C / °F Select: Yes
Display: 4 digits
Display Resolution: 0.1
Display Hold: Last reading display for 7 seconds
Low Battery Detection: Yes
Back Light: Yes
Operating Temperature: 32°F to 120°F (0°C to 50°C)
Storage Temperature: -25°C ~70°C without battery
Relative Humidity: 10% ~ 95%
Weight: 7oz (200g)
Dimension: 155mm x 127mm x 35mm
Power: 9V Alkaline or NiCd battery
