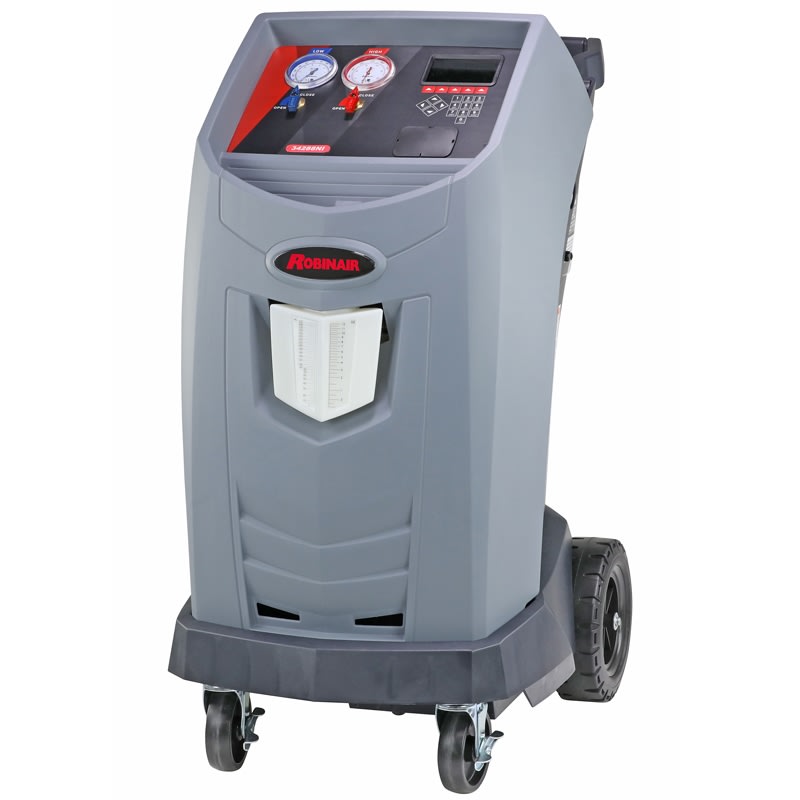

The 34288NI combines simple operation with superior accuracy. It recovers, recycles, evacuates and recharges R-134A mobile A/C systems quickly and accurately. The product outperforms the most current SAE J-2788 standards for accuracy and efficiency, recovering more than 95% of the refrigerant in a vehicle's A/C system and charging to better than +/- 1/2 oz of the programmed charge amount. Keep your machine operating with 34724 replacement filters or 13172 maintenance kits. Compatible with accessory printer 30038.
- Automatic Recovery - When this mode is selected, the 34288NI looks for pressure from the vehicle and proceeds if the pressures are acceptable.
- Automatic Air Purge - Eliminates damaging air without any monitoring of gauges or opening of valves.
- Automatic Oil Drain - The unit automatically drains system oil captured during recovery, and the display reminds you to empty the bottle. Graduations on the container clearly show you how much oil needs to be replaced.
- Refrigerant Charging - Has never been this easy. Select a charge mode from either the low side, or low side and high side. Accuracy features eliminate guesswork! (manual operation using panel valves)
- New Display - The new, easier-to-read 5 × 9 cm (4.3-in. diagonal) graphical LCD features multilingual capability – The user can select English, Spanish, or French languages.
- Refrigerant Management Systems - New and improved, system displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains. Replacement Filter Part No.
34724.
- Vacuum Function - Defaults to 15 minutes, but is programmable up to 99 minutes. Remaining time is displayed on the screen.
 Warning: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Product Features
Specifications
Dimensions: 107 cm x 61 cm x 76 cm
Display: 5 × 9 cm (4.3-in. diag) graphical LCD
Filter Capacity: 68 kg (150 lb)
Humidity: 32.2°C (90°F), 80% RH non-condensing
Gauges: Ø 80 mm (3.15 in.)
Maximum Pressure: 27.3 bar (396 PSI)
Noise: <70 dB(A)
Operating Voltage: 115V, 60 Hz
Oil Drain Bottle Capacity: 355 ml (12 oz)
Operating Temperature: 10°C to 50°C (50°F to 122°F)
Vacuum Pump: 1.5 CFM (42 L/m) @ 60 Hz
Service Hoses: 2.75 m (9 ft) / SAE J2196
Internal cylinder: 30 lb DOT (13.6 kg); 22 lb (10 kg) capacity
Weight: 73 kg (161 lb)
Model Number: 34288NI
UPC: 637335045019
Warranty: One Year
|
|
|
|
|
|
|
