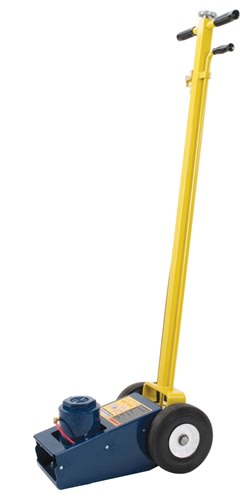

HW93733 Hein-Werner Automotive 20-Ton Air Operated Hydraulic Service Jack - Low Height Pick-Up

HW93733 Hein-Werner Automotive 20-Ton Air Operated Hydraulic Service Jack - Low Height Pick-Up

Price $1,948.79


Product Code: HW93733
Qty:

Description Prop65

The HW93733 Hein-Werner Automotive 20-Ton Air Operated Hydraulic Service Jack with Low Height Pick-Up features Dual piston action which provides speed to contact and power to lift. The T-Handle adjusts to three pumping positions for greater versatility. Extra long chassis makes picking hard to reach points easy and exact. T-Handle also features a release knob for ease of positioning and load control. Sealed hydraulic unit keeps out grit, grime and moisture for long life. Cast lift arm for heavy loads means no twisting or warpage throughout the jacks life. Paired perfect with jack stands HW93506.
Product Features
  • Powerful, compact, portable design
  • Large 8 rubber wheels for easy maneuverability
  • Low height allows lifting from axles or suspension
  • Automatic valve prevents overloading
  • Rapid two- speed air-hydraulic action quickly advances ram to load
  • Chrome plated plunger for extended jack life
  • Built-in overload valve
  • Low height 9, High height 19 3/4
  • Optional height adapters WH93265
  • 2 Year Warranty
Model Capacity Minimum Height Maximum Height Power Raise Handle Length Base Size Extension Screw Operating Pressure G.W.
HW93733 20 Ton 9-1/2 20 5 52-1/2 20-1/2 x 13 5-1/2 110-140 PSI 97 Lbs.
HW93735 25 Ton 8-1/4 18-1/2 5-1/8 53 20 x 14 5-1/8 110-200 PSI 114 Lbs.
