15100 15200 and 15234 Robinair Vacuum Pump Replacement Parts

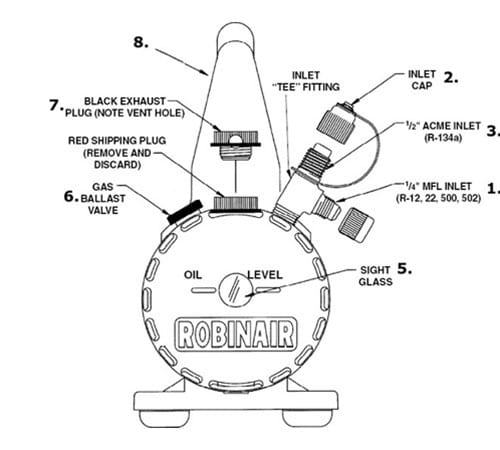

Illus. # Part # Description
1 40572 ¼"Brass Cap (package of six)
2 15330 Nylon Inlet Cap and Strap (½" Acme Thread)
3 15195 Dual Inlet Tee ¼" FL x ½" Acme, R-12 and R-134a
4 41186 Blue Foot and Base Assembly
5 15135 Shell and Sight Glass w/o Oil Drain
6 48104 Gas Ballast Valve
7 13191 Black Exhaust Plug
8 41184 Blue Handle Switch
N/S 107779 O-Ring Seal between Adapter and Shelf Assembly
N/S 116200 ¼" FL Inlet Coupler (15100)
Sort By:
Page of 1
13067 Robinair High Vacuum Grease 13067 Robinair High Vacuum Grease 1/2oz.

13067 Robinair High Vacuum Grease is a silcone based lubricant designed for high vacuum assembly applications. A stiff, nonmelting silicone lubricating material used to lubricate synthetic and silicone rubber gaskets being used in high temperature applications. High Vacuum Grease resists mineral oils and common gases and works well for a setting gel to capture o-rings during assembly.

Price $16.65
13191 Robinair Exhaust Plug For 15100 13191 Robinair Exhaust Plug For 15100

Exhaust Plug For 15100

Price $14.50
13203 Robinair Premium High Vacuum Pump Oil Quart Bottle 13203 Robinair Premium High Vacuum Pump Oil Quart Bottle

Robinair’s "High Vacuum Pump Oil" is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair "High Vacuum Pump Oil" is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time.

Price $10.95
13204 Robinair Premium High Vacuum Pump Oil Gallon Bottle 13204 Robinair Premium High Vacuum Pump Oil Gallon Bottle

Robinair’s "High Vacuum Pump Oil" is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair "High Vacuum Pump Oil" is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time. Robinair "High Vacuum Pump Oil" has a lower moisture content than other oils, thanks to our special packaging and handling procedures. Moisture degrades the oil’s purity, thinning it and reducing the pump’s ability to reach a deep vacuum.

Price $31.43
15135 Robinair Shell Sight Glass Assembly For 15100 And 15200 Vacuum Pumps 15135 Robinair Shell Sight Glass Assembly For 15100 And 15200 Vacuum Pumps

Shell Sight Glass Assembly For 15100 And 15200 Vacuum Pumps

Price $104.64
15195 Robinair Combination Inlet Tee For R-12 And R-134a For 15100 15200 Series Vacuum Pumps 15195 Robinair Combination Inlet Tee For R-12 And R-134a For 15100 15200 Series Vacuum Pumps

Combination Inlet Tee For R-12 And R-134a For 15100 / 15200 Series Vacuum Pumps. Convert your pump to R-12 and R-134a. Solid brass “tee” replaces inlet fittings on pump; includes a branch with a ¼" MFL fitting for R-12 (and other refrigerants) and a branch with ½" Acme fitting for R-134a. Includes caps for both 1/4" Flare & 1/2" ACME Fittings.

Price $32.70
15330 Robinair 1/2 ACME Cap & Strap (2 Pack) 15330 Robinair 1/2 ACME Cap & Strap (2 Pack)

1/2 ACME Cap & Strap (2 Pack) For 15224 / 15234 Series Vacuum Pumps or any ACME fitting

Price $14.44
15555 Robinair Vacuum Pump Inlet Adapter 1/4" Female Flare Swivel X 1/4" Male Flare X 1/2" ACME 15555 Robinair Vacuum Pump Inlet Adapter 1/4" Female Flare Swivel X 1/4" Male Flare X 1/2" ACME

Convert your pump to R-12 and R-134a. Solid brass inlet "tees" replace inlet fittings on pump. Includes a branch with a 1/4" Male Flare fitting for R-12 (and other refrigerants) and a branch with 1/2" Acme fitting for R-134a for automotive use.

Price $33.66
40572 Robinair Quick Seal Caps 1/4 SAE Flare (Pkg. Of 6) 40572 Robinair Quick Seal Caps 1/4 SAE Flare (Pkg. Of 6)

QUICK SEAL Caps,1/4" Sae Flare (Pkg. Of 6). Extra long skirting allow for a deep gasket, shallow "o-ring" type caps can actually depress cores causing leaks when over tightened. The gaskets in these are also replaceable, See 40083 for replacements.

Price $13.90
40577 Robinair Quick Seal Caps 1/4 SAE Flare With Core Remover (Pkg. Of 6) 40577 Robinair Quick Seal Caps 1/4 SAE Flare With Core Remover (Pkg. Of 6)

QUICK SEAL Caps,1/4" Sae Flare (Pkg. Of 6). Extra long skirting allow for a deep gasket, shallow "o-ring" type caps can actually depress cores causing leaks when over tightened. The gaskets in these are also replaceable, See 40083 for replacements. Features a core tool on the cap for convenience.

Price $3.95
40578 Robinair Quick Seal Caps 1/4 SAE Flare With Core Remover (Pkg. Of 25) 40578 Robinair Quick Seal Caps 1/4 SAE Flare With Core Remover (Pkg. Of 25)

QUICK SEAL Caps,1/4" Sae Flare (Pkg. Of 25). Extra long skirting allow for a deep gasket, shallow "o-ring" type caps can actually depress cores causing leaks when over tightened. The gaskets in these are also replaceable, See 40083 for replacements. Features a core tool on the cap for convenience.

Price $13.95
41184 Robinair Pump Handle And Switch For 15200 Series Vacuum Pumps 41184 Robinair Pump Handle And Switch For 15200 Series Vacuum Pumps

41184 Robinair Pump Handle And Switch For 15200 Series Vacuum Pumps

Price $33.98
48104 Robinair Gas Ballast For Rotary Vane Pumps 48104 Robinair Gas Ballast For Rotary Vane Pumps

See RO48105 O-ring. 48104 Robinair Gas Ballast For Rotary Vane Pumps

Discontinued
48105 Robinair Gas Ballast Gasket For 48104 48105 Robinair Gas Ballast Gasket For 48104

48105 Robinair Gas Ballast Gasket For 48104

Price $2.23
RT200R Refrigeration Technologies NYLOG RED (CFC/HCFC Mineral or AB) Gasket - Thread Sealant RT200R Refrigeration Technologies NYLOG RED (CFC/HCFC Mineral or AB) Gasket - Thread Sealant

RT200R Refrigeration Technologies NYLOG RED (CFC/HCFC Mineral or AB). NYLOG gasket and thread sealant renders a strong, flexible, lubricative glaze that prevents high pressure leakage through refrigeration gaskets and threaded fittings. NYLOG never hardens and always remains temperature and vibration resilient. Nylog Red is recommended for Mineral or Alkyl Benzene Systems

Discontinued see RT200RP
RT200RP Refrigeration Technologies NYLOG RED (CFC/HCFC Mineral or AB) Gasket - Thread Sealant (2-Pack) RT200RP Refrigeration Technologies NYLOG RED (CFC/HCFC Mineral or AB) Gasket - Thread Sealant (2-Pack)

RT200RP Refrigeration Technologies NYLOG RED (CFC/HCFC Mineral or AB) (2-Pack). NYLOG gasket and thread sealant renders a strong, flexible, lubricative glaze that prevents high pressure leakage through refrigeration gaskets and threaded fittings. NYLOG never hardens and always remains temperature and vibration resilient. Nylog Red is recommended for Mineral or Alkyl Benzene Systems

Price $15.00


Troubleshooting Guide
Your VacuMaster® pump has been designed for dependable use and long life. If something should go wrong, however, the following guide will help you get the pump back into service as quickly as possible.
If disassembly of the pump is required, check your warranty. The warranty may be voided by misuse or customer tampering that results in the pump being inoperable.
Failure To Start
  1. Check line voltage. Robinair VacuMaster® pumps are designed to start at +10% line voltage (loaded) at 41o F (5° C). At extremes, however, switching between the start and run windings may occur.
Oil Leakage
  1. Verify the oil is not a residual accumulation from spillage, etc
  2. If leakage exists, the module cover gasket or the shaft seal may need to be replaced. If leakage exists in the area of the oil drain plug, you may need to reseal the plug using a commercial pipe thread sealer.
Failure To Pull A Good Vacuum
  1. Confirm the vacuum gauge and all connections are in good condition and leak-free. You can confirm leakage by monitoring the vacuum with a thermistor gauge while applying vacuum pump oil at connections or suspected leak points. The vacuum will improve briefly while the oil is sealing the leak.
  2. Verify the pump oil is clean. A badly contaminated pump may require several oil flushes. See OIL CHANGE PROCEDURE. Note: Use only high vacuum pump oil such as Robinair’s Premium High Vacuum Pump Oil. Other oils will prevent pull-down to a deep vacuum.
  3. Verify the oil is at the correct level. For maximum pump operation, the oil must be even with the OIL LEVEL line on the sight glass when the pump is running. See OIL CHANGE PROCEDURE. Do not overfill — operating temperatures will cause the oil to expand, so it will appear at a higher level than when the pump is not running. To check the oil level, start the pump with the inlet capped. Check the oil level in the sight glass. Add oil if necessary.
When You Need Help If these procedures do not correct the problem, contact us at our toll-free service line for further information. Century Tool & Equipment is a Certified Robinair Service Center and a distributor.

1-866-277-0888
