You are here: Home > Commercial Jump Starting & All-In-One Power Systems Parts > Goodall StartAll Commercial Jump Starters > 13-425 Goodall Super Boost-All Replacement Parts

13-425 Goodall Super Boost-All Replacement Parts


ITEM NO. PART NO. DESCRIPTION QTY
1 100-903 WRAP CONTROL BOX SUPER BOOST 1
2 100-904 COVER - BOX, CONTROL 1
3 100-905 BRACKET - MOUNTING, PLUG 3
4 650-300 NUT, 3/8" -16 HEX 6
5 880-424 CAP, WEATHER LARGE RIGID W/LANYARD 1
6 820-729 RING, 12 GA. 1/4" 1
7 70-203 RIVET, 3/16 X 3/8" DIA HEAD 12
8 820-780 BLOCK-JUNCTION 3
9 101349 BLOCK-JUNCTION 3
10 830-183 METER, VOLT 0-36VDC 1
11 680-093 GROMMET, 3/4 ID X 1 3/8" OD 2
12 13-466 ISOLATER - BATTERY, 200 AMP 1
13 650-439 WASHER #12, FLAT 2
14 820-336 TERMINAL, 2 GA. 3/8" HOLE 4
15 820-791 TERM FM INSULATED P/O 16-14 1
16 820-717 RINGER, TERM 14 GA. X 3/8" 1
17 820-139 TERMINAL, 2 GA. 5/16" 2
18 800-051 CABLE - 2GA. BLACK SINGLE 8
19 820-187 TERMINAL, LUG 1/0 X 3/8" EYE 2
20 70-409 CABLE, 1/0 GA. BLACK 1
21 820-405 CONTACT, 1/0 FOR 350 PLUG 2
22 820-408 CONTACT, 4/0 USED WITH 350 PLUG 2
23 810-409 CONNECTOR - ANDERSON, 350 AMP GREY 1
24 71-406 PLUG, RED (600) 1
25 820-769 TERMINAL #10 RING 18 GA. 2
26 800-629 WIRE-18 GA. BLACK 1
27 800-649 WIRE-18 GA. RED 1
28 800-642 WIRE -16 GA. BLACK AUTOMOTIVE 2
29 710-816 LABEL, GD PROTEC SUP/BOOST-ALL 1
30 710-817 LABEL, BATTERY WIRING DIAGRAM S/B 1
31 710-906 LABEL, INSTRUCTION S/BA BOX 1
32 650-304 NUT, 1/4"-20 HEX 2
33 650-234 SCREW, #10 X 3/8" HHSM 8
34 650-203 SCREW - BUTTON, 1/4 - 20 X .50 STAINLESS 8
35 71-212 BOOT, STARTING CABLE - RED 3
36 880-102 BOOT, BATTERY LUG - BLACK 3
Sort By:
Page of 1
100-903 Goodall Wrap Control Box Super Boost 100-903 Goodall Wrap Control Box Super Boost

100-903 Goodall Wrap Control Box Super Boost

Price $127.00
100-904 Goodall Cover - Box, Control 100-904 Goodall Cover - Box, Control

100-904 Goodall Cover - Box, Control

Price $107.00
122108-001 QuickCable 350A 36V Gray Polycarb. SB AWG 2/0 - 4/0 Housing 122108-001 QuickCable 350A 36V Gray Polycarb. SB AWG 2/0 - 4/0 Housing (Each)

122108-001 350 Amp 2/0 - 4/0 Gauge Gray Polycarbonate SB Housing (Housing Only No Contacts) - All housings are color keyed for easy voltage identification.

Price $9.76
122208-001 QuickCable 350A 24V Red Polycarb. SB AWG 2/0 - 4/0 Housing 122208-001 QuickCable 350A 24V Red Polycarb. SB AWG 2/0 - 4/0 Housing (Each)

122208-001 350 Amp 2/0 - 4/0 Gauge Red Polycarbonate SB Housing (Housing Only No Contacts) - All housings are color keyed for easy voltage identification.

Price $9.49
123110-001 QuickCable 4/0 GA 350 Amp Silver/Copper SB Crimp Contact (Each) 123110-001 QuickCable 4/0 GA 350 Amp Silver/Copper SB Crimp Contact (Each)

123110-001 4/0 Gauge 350 Amp Silver Plated Copper SB Crimp Contact (Each) - These solid copper and silver plated contacts are excellent for general commercial and industrial applications. When installed with the proper crimp tool, the final assemblies will meet UL and CSA specifications.

Price $8.55
123401-001 QuickCable 1/0 Gauge 350 Amp Contact (Each) 123401-001 QuickCable 1/0 Gauge 350 Amp Contact (Each)

123401-001 QuickCable 1/0 Gauge 350 Amp Contact (Each) - Use a crimp tool for solid dependable crimps. Solid copper contact. Excellent for general commercial and industrial uses. Final assemblies meet UL and CSA specifications, when all components are made and crimped with a UL listed tool.

Price $12.60
13-425 Goodall Super Boost-All w/Batt Sep 25' 2/0 ga cable 13-425 Goodall Super Boost-All Battery Isolator 25' 2/0 Ga Cable

Designed to be mounted on your service vehicle with 2 or 4 auxiliary jump starting batteries for starting 12 or 24 volt vehicles. Auxiliary batteries are charged from the service vehicle’s electrical system by using the internally mounted battery separator. The Goodall 13-425 Control Box for Super Boost All comes with 25 foot 2/0 gauge cable and clamp assembly with battery separator. See our battery box section for support.

Price $2,149.00
13-466 Goodall Battery Separator 200 Amp 13-466 Goodall Battery Isolator 200 Amp

Battery Separator 200 Amp

Price $531.00
13-492 Goodall Super Boost-All 12/24V With Protect-All Safety Technology 13-492 Goodall Super Boost-All 12/24V With Protect-All Safety Technology

The Goodall Manufacturing Integrated Super BoostAll, No. 13-492, is compact, efficient and provides an economical solution for 12V and 24V jump starting. The 13-492 uses auxiliary jump starting batteries (not included), along with the vehicle’s alternator, increasing the total jump starting power. Features include Reverse polarity and open clamp protection for a safer jump starting experience.

Price $3,585.00
650-234 Goodall Screw, #10 X 3/8" Hhsm 650-234 Goodall Screw, #10 X 3/8" Hhsm

650-234 Goodall Screw, #10 X 3/8" Hhsm

Price $1.00
650-304 Goodall Nut, 1/4"-20 Hex 650-304 Goodall Nut, 1/4"-20 Hex

650-304 Goodall Nut, 1/4"-20 Hex

Price $1.00
680-319 Goodall Weather Cap Large Rigid With Lanyard (71-424S) 680-319 Goodall Weather Cap Large Rigid With Lanyard (71-424S)

680-319 Goodall Weather Cap Large Rigid With Lanyard (71-424S). Fits SB350 Style connectors.

Price $24.50
71-402 GoodAll Plug 12-600 Series 350 Amp Red 1/0 Gauge Crimp Lugs 71-402 GoodAll Plug 12-600 Series 350 Amp Red 1/0 Gauge Crimp Lugs

71-402 GoodAll Plug 12-600 series 350 Amp Red With 1/0 Gauge Crimp Lugs

Price $49.99
71-406 Goodall Plug Red 350 Amp no contacts 71-406 Goodall Plug Red 350 Amp no contacts

Plug Red 350 Amp no contacts

Price $14.95
710-816 Goodall Label, Gd Protec Sup/Boost-All 710-816 Goodall Label, Gd Protec Sup/Boost-All

710-816 Goodall Label, Gd Protec Sup/Boost-All

Price $9.00
710-817 Goodall Label, Battery Wiring Diagram S/B 710-817 Goodall Label, Battery Wiring Diagram S/B

710-817 Goodall Label, Battery Wiring Diagram S/B

Price $9.00
710-906 Goodall Label, Instruction S/Ba Box 710-906 Goodall Label, Instruction S/Ba Box

710-906 Goodall Label, Instruction S/Ba Box

Price $12.00
810-409 Goodall Plug Gray 350 Amp no contacts 810-409 Goodall Plug Gray 350 Amp no contacts

Plug Gray 350 Amp no contacts

Price $43.14
820-405 Goodall 1/0 contacts for 350 amp plug 820-405 Goodall 1/0 contacts for 350 amp plug (Each)

1/0 contacts for 350 amp plug (Each)

Price $13.95
820-408 Goodall 4/0 contacts for 350 amp plug (Each) 820-408 Goodall 4/0 contacts for 350 amp plug (Each)

4/0 contacts for 350 amp plug (Each)

Price $14.95
820-431 Goodall 2/0 contacts for 350 amp plug 820-431 Goodall 2/0 contacts for 350 amp plug (Each)

2/0 contacts for 350 amp plug (Each)

Price $15.70

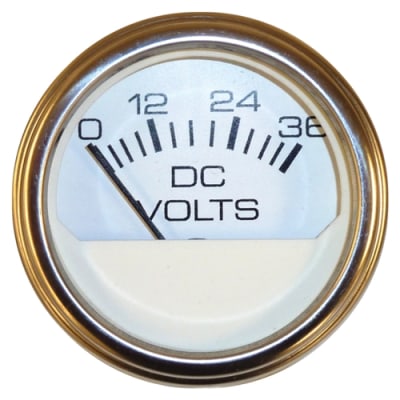

830-183 Goodall Voltmeter 0-36 Volts D.C. With Diode (71-510S) 830-183 Goodall Voltmeter 0-36 Volts D.C. With Diode (71-510S)

830-183 Goodall Voltmeter  0-36 Volts D.C. With Diode (71-510S)

Price $66.00
880-422 Goodall Weather Cap Rigid With Lanyard (71-422S) 880-422 Goodall Weather Cap Rigid With Lanyard (71-422S)

880-442 Goodall Weather Cap Rigid With Lanyard (71-422S). Fits SB175 Type Connectors.

Price $11.95
