You are here: Home > Welder Parts - MIG > 117-076-000 83125 Century 125GS mig 90 amp 30-125 range hot

117-076-100 83126 Century 125GL, 125GS, 2145, 83125, 83126, 20511

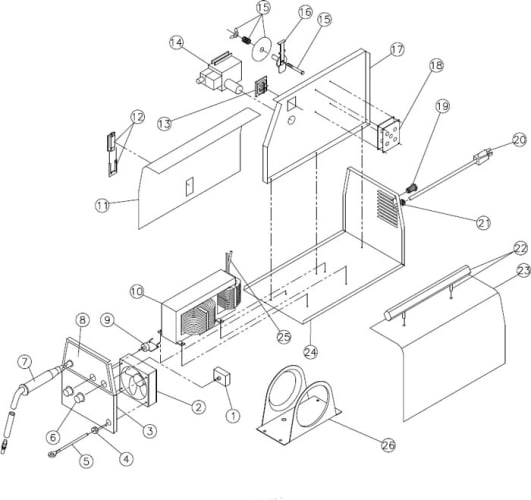

Item Lincoln Stock # Customer # Description
1 246-422-000 Heat control switch
2 S18977-4 216-100-000 Fan motor
3 NLA 410-900-XXX Front panel
4 541-057-000 Strain relief
5 238-223-666 Cable assy.
6 246-041-666 246-107-000 Knob
7 238-592-000 238-592-000 6' mig gun (used on units built after 1-1-01, RED trigger)
NLA 238-567-666 6' mig gun (used on units built from 5-2-99 to 12-31-00, BLACK trigger)
238-507-000 238-507-000 6' mig gun (used on units built before 5-2-99, RED trigger, gas diffuser has left-hand threads)
8 NLA 410-868-XXX Control panel
9 880-460-666 880-418-666 Wire speed control
10 NLA 880-410-000 Transformer
11 NLA 410-865-XXX Left side panel
12 NLA 312-295-666 Slide latch w/clip
13 246-414-000 Terminal block
14 880-406-001 880-406-666 Drive motor / gear box

310-187-000 Steel drive roller, (0.024/0.030/0.035)

880-427-666 880-427-666 Neoprene drive roller for aluminum

S24355-6 Idle roller (C609Z)

S24355-9 Wire feed tension knob (smaller)

S24355-10 Wire feed tension spring

334-627-000 Inlet Guide tube (cut to length (2.75"))
15 131-419-000 131-350-002 Tension kit
16 312-076-666 312-076-666 Spindle
17 NLA 410-867-XXX Center panel
18 880-402-666 880-402-666 Rectifier (includes 2 plates)
19 253-333-000 253-333-666 Push in union fitting (5/32")
20 248-327-000 Power cord
21 239-074-000 Strain relief
22 312-296-666 Handle
23 NLA 410-864-000 Right side panel
24 NLA 880-431-000 Base
25 246-428-000
880-415-000 		Thermo breaker

Not Shown

26 334-468-666 334-468-666 Liner for mig gun with RED trigger
27 KP1937-3 334-476-666 Liner for mig gun with BLACK trigger
28 NLA 412-635-010 Tank bracket
29 334-438-000 334-438-000 Preset Regulator w/o gauges
30 334-460-001 334-460-001 Adjustable Regulator with gauges
31 S26399-28 059-217-040 84", 5/32" OD gas hose
32 KP11-25 43090, KP2039-1B1 0.025 contact tips
33 KP11-30 43100, KP2039-2B1 0.030 contact tips
34 334-203-000 43480 Steel welding nozzle
35 312-110-666 312-110-666 Wire spool adapter
36 239-292-666 239-010-102 Ground clamp
37 KH600 332-239-666 Helmet
Sort By:
246-041-666 Universal Selector Knob 246-041-666 Universal Selector Knob

246-041-666 Universal Selector Knob with set screw for controls with 1/4" Stem. Replaces all knobs with 1/4" diameter shaft. Fits 1/2 shaft and 3/4 style shaft stems.

Price $7.65
246-414-666 Terminal Block 246-414-666 Terminal Block

246-414-666 Terminal Block

Price $21.50
246-422-666 5 Position Selector Switch 246-422-666 5 Position Selector Switch

246-422-666 5 Position Selector Switch (ASR267-316) 246-422-000. Due to variations in models, always check your outputs and wiring with a meter before use.

Discontinued
253-333-000 Fitting, Union 5/32 253-333-000 Fitting, Union 5/32

Gas Hose Fitting, For 5/32" hose  with Female Tube fittings on both ends. If you need gas hose see s26399-28. For regulators see 334-438-000 or 334-460-001.

Price $27.91
253-406-666 Hose Connector 1/4" MPT X 5/32" Tube Press In 253-406-666 Hose Connector 1/4" MPT X 5/32" Tube Press In

253-406-666 Hose Connector 1/4" MPT X 5/32" Tube Press In

Price $14.88
310-187-666 Drive Roller .024/.030/.035 310-187-666 Drive Roller .024/.030/.035

310-187-666 Drive Roller .024/.030/.035

Price $39.95
312-076-666 Spindle Arm for Century / Lincoln Welders 312-076-666 Spindle Arm for Century / Lincoln Welders

312-076-666 Spindle Arm for Century / Lincoln Welders. See part # 131-419-000 for spindle tension kit or the 312-110-666 spool adapter to fit a 8" spool of wire to the same spindle.

Discontinued See 9SS31898-1
334-203-000 Nozzle, 1/2 Id 334-203-000 Nozzle, 1/2 Id (Each)

Tweco Style MIG Welding Nozzle, Recessed. (1 pack). Replaces Century/Lincoln part numbers: 4348, 43480, 334-203-100, 334-203-500, 334-203-908, M15578, Magnum 100, KP21T-50, 21-50. Works with most Century and Lincoln Electric welders.

Price $8.00
334-474-666 Tweco Trigger 2010-2095 334-474-666 Tweco Trigger 2010-2095

334-474-666 Tweco Trigger 2010-2095 For older 238-566 and 238-567 Mig guns.

Price $10.95
334-476-666 Steel Liner .023 - .035 334-476-666 Steel Liner .023 - .035

334-476-666 Steel Liner .023 - .035

Discontinued See KP45-40-15
880-402-666 Lincoln Electric Rectifier Assembly 880-402-666 Lincoln Electric Rectifier Assembly

880-402-666 Lincoln Electric Rectifier Assembly. This kit comes unassembled.

Price $39.50
880-406-001 Gearmotor / Drive Assembly .024. Replaces part numbers 880-382-000, 880-382-001, 880-382-666, 880-406-000, 880-406-666 880-406-001 Gearmotor / Drive Assembly .024

Gearmotor / Drive Assembly  .024.  Replaces part numbers 880-382-000, 880-382-001, 880-382-666, 880-406-000, 880-406-666

Price $175.00
880-427-666 Roller, Composite Drive 880-427-666 Roller, Composite Drive

880-427-666 Neoprene Drive Roller For Aluminum. Used on drive base assembly 880-406-001, 880-382-000, 880-382-001, 880-382-666, 880-406-000, & 880-406-666.

Price $39.50
880-454-666 Lincoln Electric Rectifier Assembly 880-454-666 Lincoln Electric Rectifier Assembly

880-454-666 Lincoln Electric Rectifier Assembly. This kit comes unassembled.

Discontinued See 880-402-666
880-460-666 Wire Speed Control Assembly 880-460-666 Wire Speed Control Assembly

880-460-666 Wire Speed Control Assembly

Price $75.00
KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023 KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack)

KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023, Replaces Century and Marquette Part Numbers:4309, 43090, 334-159-000, 334-159-300, 334-159-908, M15522, KP11-25 & Others. Used on Century made welders model 117-001 to 117-090.

Price $13.95
Portable Wire Feed Welder Owners Manual Portable Wire Feed Welder Owners Manual

This Operators manual provides specific information for your specific model. This manual contains information such as the Important Safety Instructions, Usage and Maintenance of your Welder. This document is provided as a download PDF format. We suggest you save it to your computer for future reference.
Model Coverage: Century 117-076, 2145, 83125, 83126, 20511, 125GL/GS, Sears 20511, 20111, 46-9848-6, 46-9849-6, 9-20111, 9-20511

Price $8.00
