117-042 5Z136A Dayton 225 amp phase-control MIG welder (CSA)

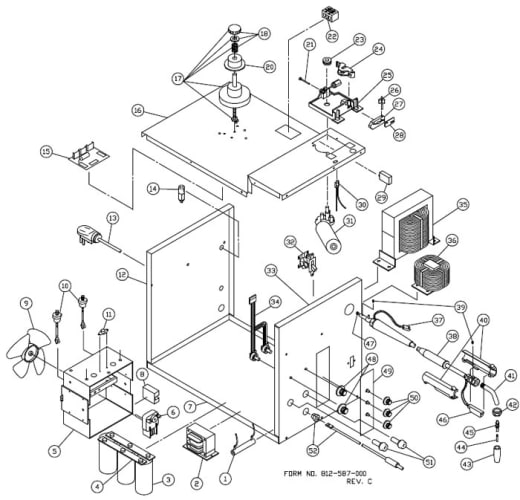

117-042 Replacement Parts List
Item No.
 		Lincoln #
Customer #
 		Description
1

880-158-666
Bleeder Resistor
2
880-041-888 880-041-888
Control Transformer, 230 Volt AC to 24 Volt DC, 6 Amp
3
213-018-666 213-018-666
Capacitor, 45,000 mf, 45 Volt DC
4

412-202-000
Buss Bar
5

860-039-000
Fan Shroud / Heat Sink Assembly
6
216-099-666
216-085-666
Fan Motor
7

410-594-000
Base
8
216-062-666
216-062-000
Triac Relay, 75 Amp
9

316-010-000
Fan Blade
10
244-070-666
244-070-666
Diode
11

216-053-000
Thermostat
12

410-675-020
Back Panel
13

248-178-666
Power Cord 8/3, 8.5' with #10 Spade (2) & #10 Ring Terminals


248-289-000
Power Cord 8/3, 8.5' with #10 Spade (2) & #10 Ring Terminals
14
246-086-666
246-086-666
Gas Solenoid, 24 Volt DC
15
880-113-666
880-292-008
Main Circuit Board
16

410-674-010
Drive Deck
17
312-066-666
860-575-100
Spindle
18
131-419-000
246-363-000
Tensioner Knob Only (no spring or washer)
20
312-110-666
541-083-000
Spindle Adapter
21

239-208-000
Inlet Guide Tube
22

239-057-000
Terminal Block
23
310-122-500
4323
Drive Roller 0.024 / 0.030 / 0.035


310-154-000
Drive Roller 0.045 Serrated
24

312-107-000
Tension Arm Only
25
880-130-666
880-130-666
Drive Base Assembly with Arm
26

246-326-000
Gun Connector Knob
27
412-465-666
412-465-666
Gun Connector Block
28

412-464-000
Copper Jumper
29

246-365-000
Circuit Breaker for Drive Motor


246-142-666
Circuit Breaker for Drive Motor
30

880-035-666
Gun Wiring Harness (female)
31
216-089-666
216-089-666
Drive Motor with Gearbox
32
216-010-666
216-010-666
Power Switch
33

410-805-080
Front Panel
3
880-052-666
880-052-666
Heat & Wire Speed Harness with Potentiometers
35

880-040-008
Main Weld Transformer
36

860-772-888
Reactor Coil
37

860-744-000
Gun Wiring Harness (male)
38
238-393-000
4365
Mig Gun Assembly 12'

238-296-666

Mig Gun Assembly 15'
39

084-019-000
Set Screw, #8-32 x 1/8"
40

334-254-000
(90206)
 Handle Case
41
334-252-000

Conductor Tube
42

334-302-000
(90035)
 Handle Cap
43
334-203-300 43480
Standard Nozzle

334-211-300 43290
Spot Nozzle, Notched

334-211-300
M15577
Spot Nozzle, Notched
44
KP2039-1B1
43090
0.025 Contact Tips

KP2039-2B1
43100
0.030 Contact Tips

KP2039-3B1
43110
0.035 Contact Tips

KP2039-4B1
43390
0.045 Contact Tips
45
334-363-000
90708
Gas Diffuser
46
334-255-000
96KL-R
Trigger
47
KP1933-1 334-375-000
Steel Liner

KP1933-1 4370
Steel Liner

KP1955-1 334-376-000
Teflon Liner

KP1955-1
4368
Teflon Liner
48

246-095-000
Knob 1.5"
49
880-114-666
880-114-666
Spot-Stitch Circuit Board
50

246-094-000
Knob 1"
51
312-045-666
312-045-000
Receptacle, Panel Mount
52

238-193-000
Jumper Assembly
53
238-009-500
238-009-500
Ground Cable with Plug & Clamp (12') (Not Shown)
54
KH525 (239-010-301)
41001
Ground Clamp (Not Shown)
55

410-391-010
Right Side Panel (Not Shown)
56

410-392-010
Left Side Panel (Not Shown)
57

410-390-010
Hood (Not Shown)
58

246-103-000
Hood Handle (Not Shown)
59
334-286-666
334-286-666
Regulator (Not Shown)
60
059-245-666

Gas Hose (Not Shown)
61
332-337-300
47330
Welding Helmet (Not Shown)
