117-015 20101 Sears 100 amp MIG welder

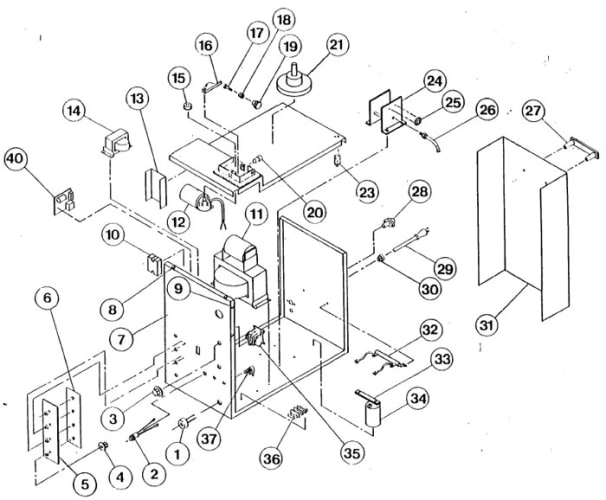

117-015 Replacement Parts List
Item No.
 		Lincoln #
 		Customer #
 		Description
1
312-045-666
312-045-000
Receptacle, Panel Mount
2

245-078-666
Power Light
3

246-095-000
Knob 1.5"
4

246-094-000
Knob 1"
5

541-067-000
Insulation for PCB
6

860-489-000
Spot-Stitch Board
7

711-150-040
Faceplate
8

512-035-000
Rubber Cushion
9

541-073-000
Domed Hole Plug
10
216-055-666
216-055-666
Triac Relay, 40 Amp
11

830-652-888
Main Weld Transformer
12
216-079-666
860-581-100
Drive Motor, 24 Volt DC
13

221-006-000
Drive Transistor
14

880-041-888
Drive Transformer 230 Volt AC to 24 Volt DC
15
310-122-500
4323
Drive Roller, 0.024 / 0.030 / 0.035

860-616-002
4324
Drive Roller, Teflon
16

310-123-000
Drive Tension Bar
17

081-044-000
Tension Adjustment Bolt
18

330-021-000
Tension Spring
19

246-113-000
Tension Knob
20

410-325-000
Inlet Guide Tube
21
312-066-666
312-066-666
Spindle
23
246-212-666
246-212-666
Gas Solenoid
24

860-506-000
Heat Sink Assembly
25

216-053-000
Thermostat
26
214-004-666
214-004-666
Diode
27

246-103-000
Handle
28

246-116-000
Fuse Holder


245-060-000
Fuse, BAN30 or BLN30
29

248-164-666
Power Cord
30

541-020-000
Strain Relief
31

410-230-000
Hood
32

860-523-000
Resistor Assembly, 25 Ohm, 50 Watt
33

410-190-000
Buss Bar
34
213-018-666
213-018-000
Capacitor, 45,000 mf, 45 Volt DC
35
216-042-666
216-042-000
Power Switch, 230 Volt AC, 40 Amp
36

239-094-000
Terminal Block
37

216-058-000
Push-on Momentary Switch
38

410-347-020
Right Side Panel
39

410-348-020
Left Side Panel
40
860-614-666
860-614-666
Main Circuit Board with Transistor
41
238-155-000
4320
Mig Gun Assembly, 10' (Not Shown)
42

238-009-500
Ground Cable with Plug & Clamp 12' (Not Shown)
43
334-286-666
334-286-666
Gas Regulator (Not Shown)

059-245-666

Gas Hose (Not Shown)
