117-007 20102 Sears 100 amp MIG welder

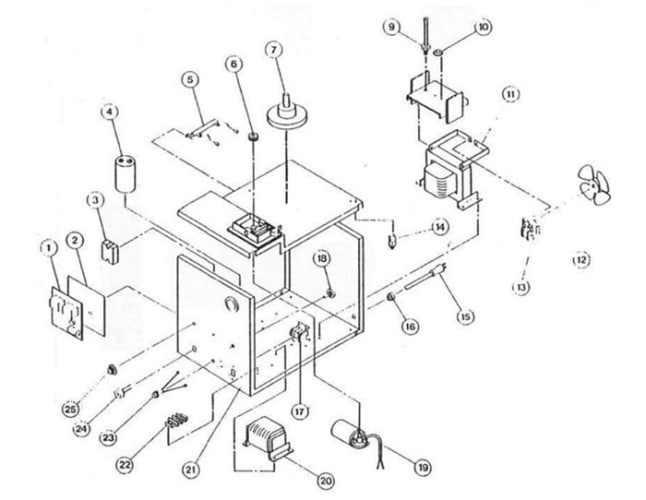

117-007 Replacement Parts List
Item No.
 		Customer #
 		Description
1
 860-573-100
 Main Circuit Board with Transistor
2
 541-084-000
 Insulation
3
 216-055-666
 Triac Relay, D2440
4
Capacitor, 45,000 mf, 45 Volt DC
5
 860-523-000
 Resistor Assembly, 25 Ohm, 50 Watt
6
 4323
 Drive Roller, 0.024 / 0.030 / 0.035
7
 312-066-666
 Spindle Assembly
9
 860-476-666
 Diode Assembly
10
 216-053-000
 Thermostat
11
 860-702-888
 Main Weld Transformer
12
 316-007-300
 Fan Blade
13
 216-034-100
 Fan Motor
14
 246-086-666
 Gas Solenoid, 18-24 Volt DC
15
 248-149-000
 Power Cord
16
 541-020-000
 Strain Relief
17
 216-042-000
 Power Switch, 230 Volt AC, 40 Amp
18
 246-104-000
 5-Position Power Switch
19
 860-581-100
 Drive Motor
20
 860-572-888
 Reactor Coil
21
 711-147-080
 Faceplate
22
 239-094-000
 Terminal Block
23
 245-078-000
 Indicator Light
24
 312-045-000
 Receptacle, Panel Mount
25
 246-105-000
 Knob
26
 410-437-010
 Hood (Not Shown)
27
 410-323-100
 Right Side Panel (Not Shown)
28
 410-326-100
 Left Side Panel (Not Shown)
29
 238-009-500
 Ground Cable with Plug & Clamp, 12' (Not Shown)
30
 4320
 Mig Gun Assembly, 10' (Not Shown)
31
 238-009-500
 Ground Cable with Plug & Clamp, 12' (Not Shown)
30
 334-285-666
 Gas Regulator (Not Shown)
31
Gas Hose (Not Shown)
32
 880-041-888
 Control Transformer (Not Shown)
