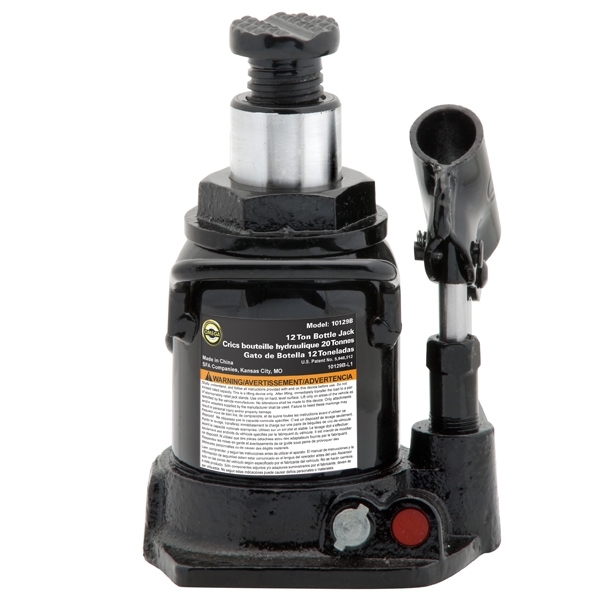

10129W Omega 12 Ton Side Pump Hydraulic Shorty Bottle Jack

10129W Omega 12 Ton Hydraulic Shorty Bottle Jack

Price $90.00


Product Code: OM10129W
Qty:

Description Prop65

10129W Omega 12 Ton Side Pump Hydraulic Shorty Bottle Jack: Hydraulic system is protected from  internal damage by a by-pass mechanism U.S Patent No. 5,946,912. Machined and polished cylinders with die-cut steel with die-cut threads provide non-abrasive leak-free, durable performance. Fabricated from hard-cast steel with heat-treated critical stress areas. Unique cross-type forged release valve assures positive load control. With a wide, rugged base providing stability and strength.
Product Features
  • Easiest accessible pumping system eliminates off-center pumping force for the most efficient operation
  • Extra large base provides added stability and strength
  • Serrated heat-treated saddle provides generous lifting area and secure grip
  • Heat-treated extension screw allows low pick-up height adjustment and maximum lift height
  • U.S. Patented built-in by-pass device protects hydraulic system from over-pumping damage
  • Unique cross-type forged release valve assures positive control
  • A wide, rugged base provides stability and strength
  • Critical stress points are reinforced in all models for added durability and dependability

Model Capacity Minimum
Height
Maximum
Height
Hydraulic
Lifting
Extension
Screw
Base Size
Length
Base Size
Width
G.W.
10025W 2 Ton 7-1/4" 13-5/8" 4-3/8" 2" 3-3/4" 3-5/8" 7 Lbs.
10045W 4 Ton 8" 15-3/8" 5" 2-3/8" 4" 3-7/8" 9 Lbs.
10065W 6 Ton 8-5/8" 16-3/4" 5-1/8" 3" 4-1/4" 4" 12 Lbs.
10085W 8 Ton 8-7/8" 17-5/8" 6" 2-3/4" 4-3/4" 4-3/4" 14 Lbs.
10125W 12 Ton 9-1/2" 18-5/8" 6" 3-1/8" 5-1/4" 5-1/8" 18 Lbs.
10129W 6" 10-5/8" 3" 1-5/8" 14 Lbs.
10205W 20 Ton 9-1/2" 18-5/8" 6" 3-1/8" 6-1/4" 5-7/8" 27 Lbs.
10209W 6-1/2" 11-1/4" 3-1/8" 1-5/8" 21 Lbs.
10300 30 Ton 11" 18" 7" N/A 8-1/8" 6-7/8" 55 Lbs.
10500 50 Ton 9-1/2" 13-7/8" 4-3/8" 10-7/8" 7-5/8" 107 Lbs.
